Office Lathe

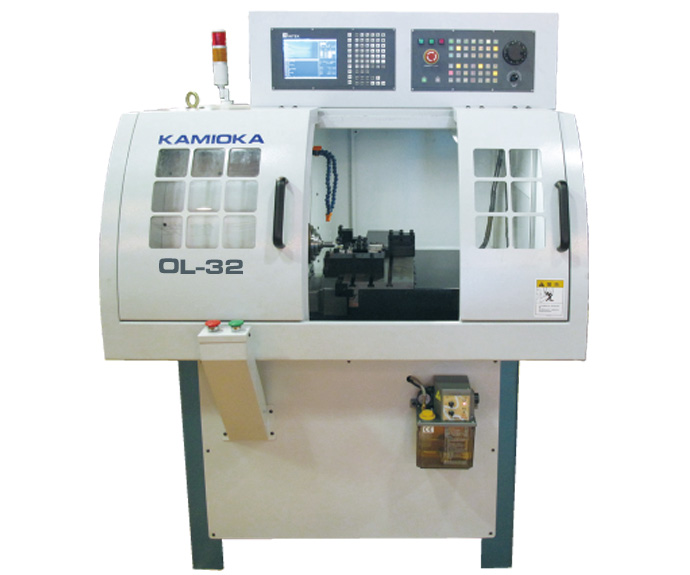

Office Lathe OL-32
| 分享到： |  |
| FEATURES | |
 |
 |

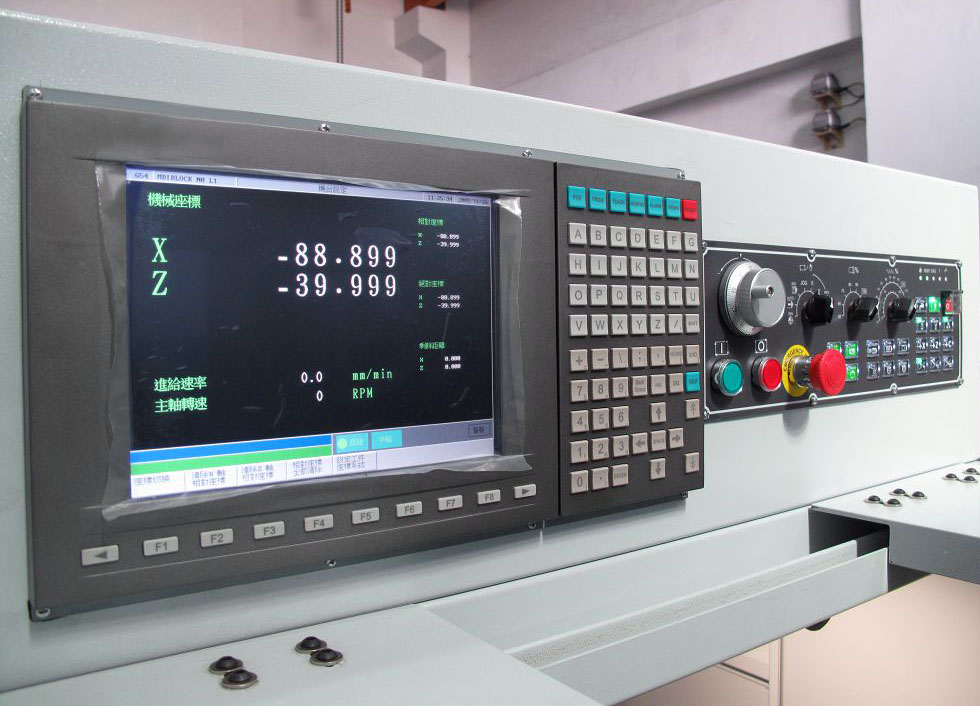

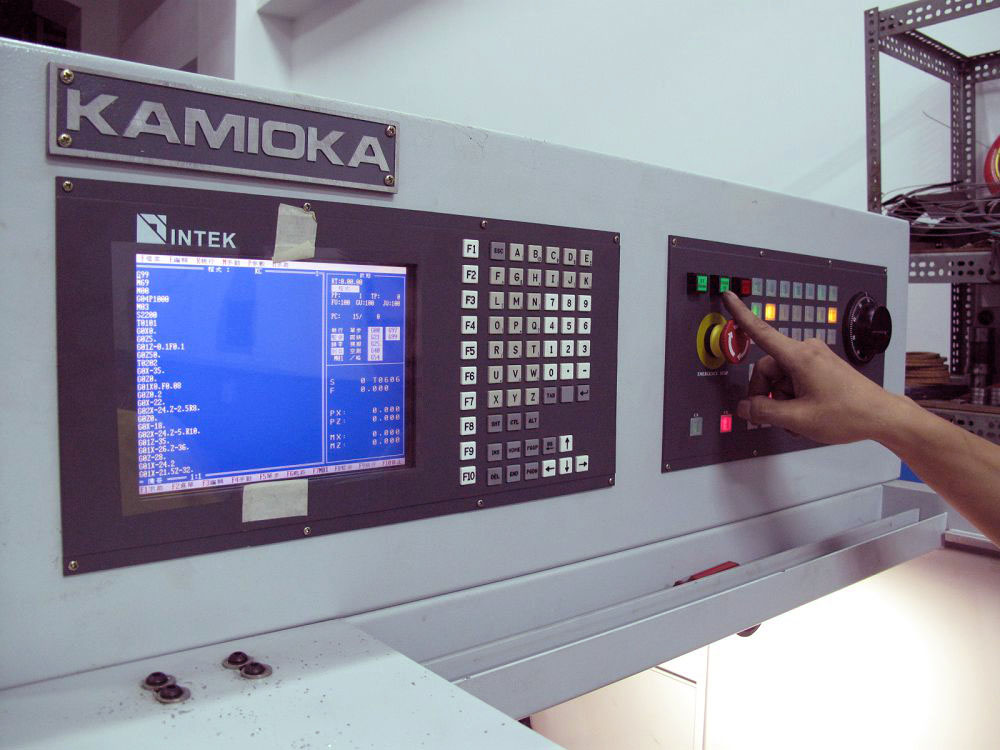

| INTEK PC-based NC | SYNTEC PC-based NC |
 |
 |

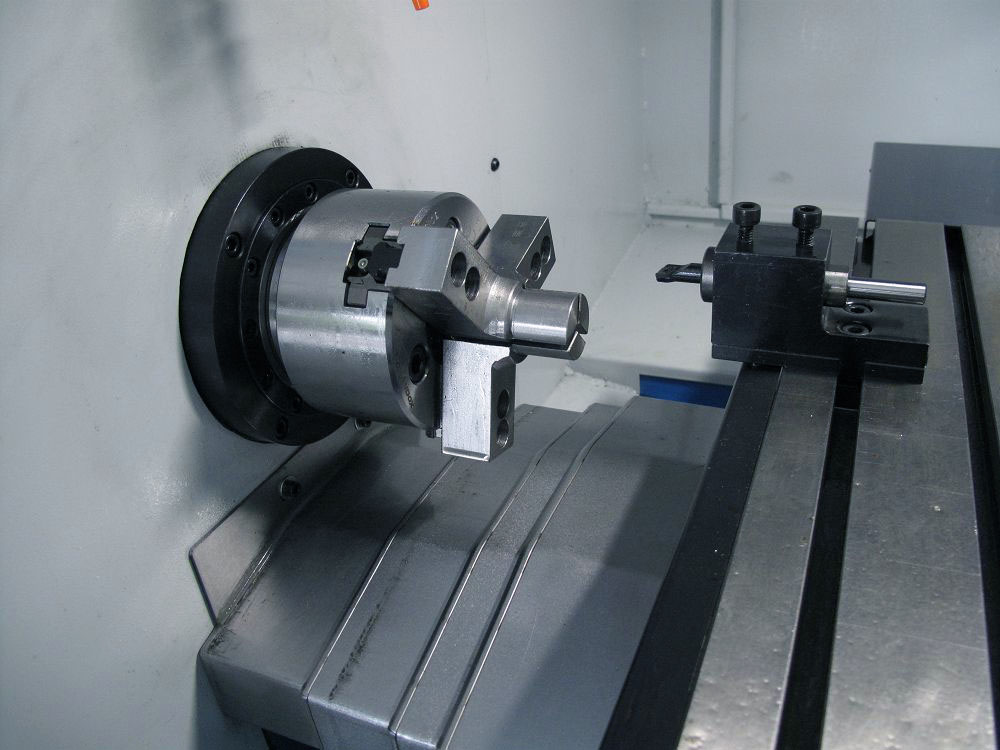

| 4-inch three-jaw hydraulic chuck (option) | Compact machine with bigger working capacity |

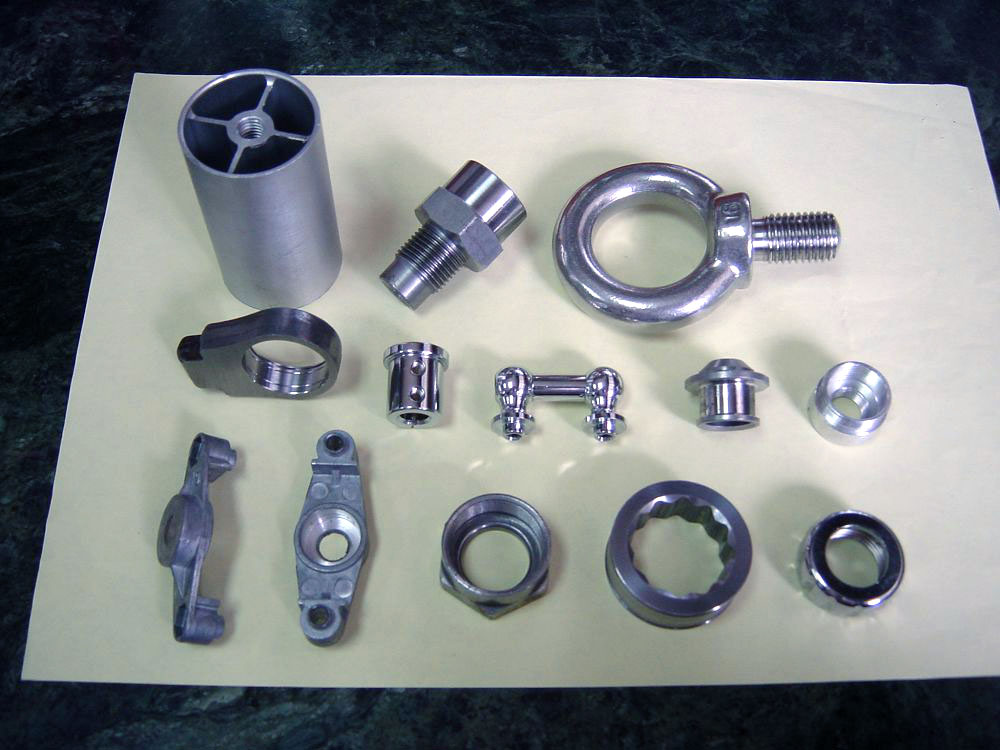

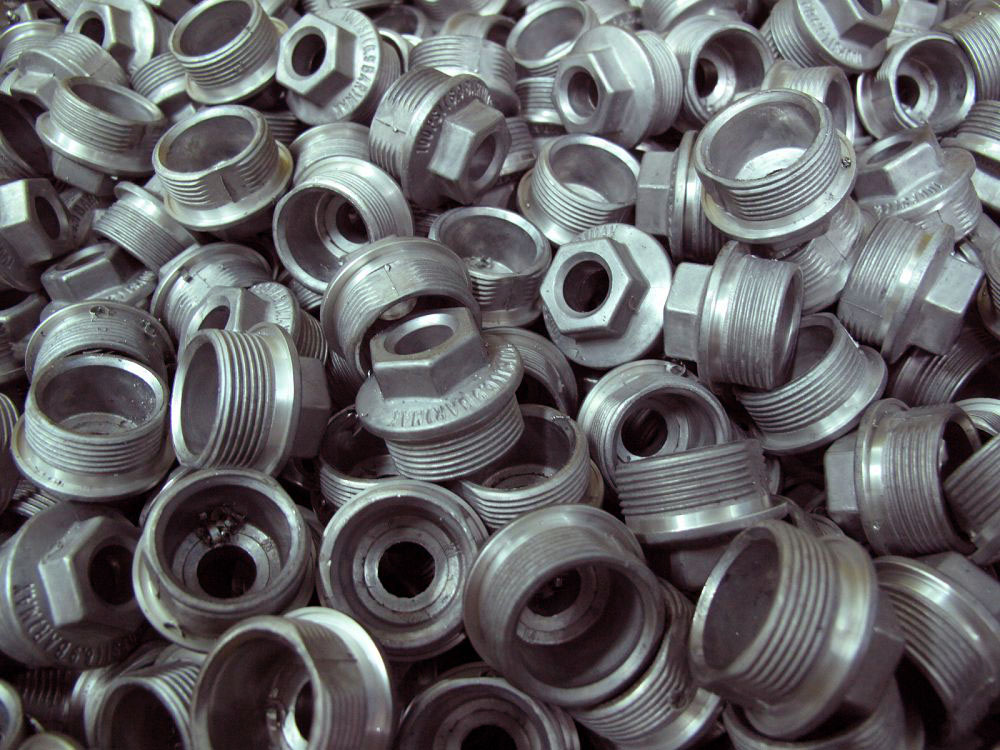

| SAMPLE APPLICATION | |
 |
 |
| Item/Model No. | Unit | OL-32 |
| Max. Chuck Capacity | ||
| Bar Stock | mm (in.) | - |
| Square | mm (in.) | - |
| Hexagonal | mm (in.) | - |
| Elastic Clamp | mm (in.) | ø32 (ø1.26) |
| Slide Travel | ||
| Max. Main Slide Travel (Forward & Backward) | mm (in.) | - |
| Max. Front Cross Slide Travel | mm (in.) | - |
| Front Cross Slide Travel | - | |
| Max. Rear Cross Slide Travel | mm (in.) | - |
| Lateral Adjustment of Rear Cross Slide | mm (in.) | - |
| X/Z axis | mm (in.) | 170/120 (6.69/4.72) |
| Tailstock | ||
| Tailstock Spindle Dia. | mm (in.) | - |
| Tailstock Spindle Taper | - | |
| Tailstock Spindle Travel | mm (in.) | - |
| Spindle | ||
| Spindle Speed | rpm | 2,500 |
| General Information | ||
| Motor | kW (HP) | 2.2 (3) |
| Dimension (W×D×H) | mm (in.) | 1,350×1,350×1,800 (53.15×53.15×70.87) |
| Machinery Weight (Net) | kg (lb.) | 650 (1,430) |
●STANDARD EQUIPMENT
1. Full Enclosure Splash Guard
2. Cutting Coolant Nozzle
3. Lubrication System
4. Chip Cart
5. Work Lamp and Alarm Indicator
6. Service Tools and Leveling Bolts
7. 2-piece ID Tooling 20mm
8. 2-piece OD Tooling 16mm
9. Mechanical and Electrical Operation Manuals
10. One Year Warranty for Machine under Normal Operation (From the Date on Bill of Lading)
●OPTIONAL ACCESSORIES
1. 4" Three-jaw Hydraulic Chuck
2. Bar Feeder 1.5M
3. Transformer
* KAMIOKA reserves the right to change design, color or spec without prior notice.
