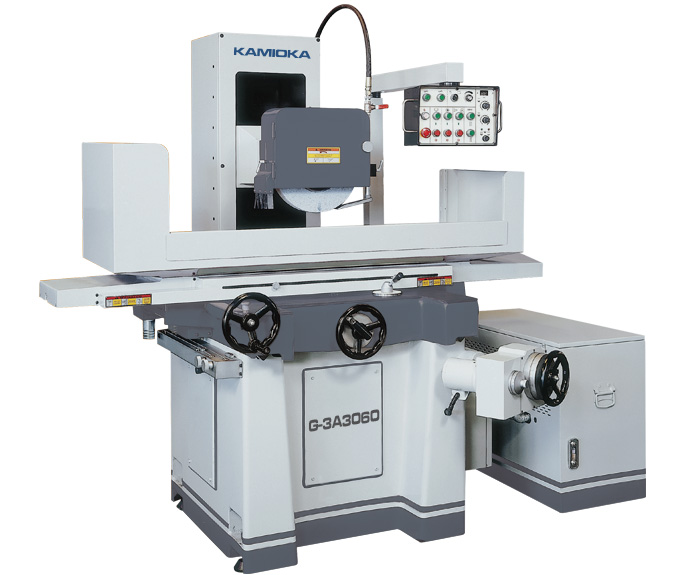

Surface Grinder G-3A3060
Extra large oil tank and double pumps design provide effective cooling to the motion friction heat and improve the circulating lubrication. The built-in switch box not only protects the electronic components, but also prevents the coolant from entering.
The column is an oversized and increased height construction. The honeycomb structure may reduce resonance in heavy duty machining. Powerful 7.5HP spindle motor provides better grinding capability and higher efficiency. The micrometric adjustment device is easy to operate with graduation in 0.001mm.
The cross feed is transmitted through a high precision ball screw, assuring high accuracy of feeding and smooth movement. -

Item/Model No. Unit G-3A3060
Table Size mm (in.) 300×650 (11.81×25.59)
Longitudinal Travel mm (in.) 680 (26.77)
Cross Travel mm (in.) 320 (12.6)
Spindle Center to Table mm (in.) 600 (23.62)
Magnetic Chuck Size mm (in.) OPT. 300×600 (11.81×23.62)
Longitudinal Feed
Manual Travel mm (in.) 750 (29.53)
Automatic Travel mm (in.) 700 (27.56)
Table Traverse Rate M/min 5~25
Cross Feed
Manual Travel mm (in.) 350 (13.78)
Automatic Travel mm (in.) 310 (12.2)
Automatic Feed (Variable) mm 0.5~10
Hand Wheel per Revolution mm 5
Hand Wheel per Graduation mm 0.02
Micrometric Adjustment per Revolution mm OPT. 0.2
Micrometric Adjustment per Graduation mm OPT. 0.001
Rapid Traverse Rate mm/min (ipm) -
Vertical Feed
Hand Wheel per Revolution mm 1
Hand Wheel per Graduation mm 0.005
Micrometric Adjustment per Revolution mm 0.2
Micrometric Adjustment per Graduation mm 0.001
Rapid Traverse Rate mm/min (ipm) -
Automatic Feed (Variable) mm -
Grinding Wheel
Grinding Wheel Size (OD×W×BD) mm 355×38~50×127
Spindle Speed rpm 1,720(60hz) / 1,425(50hz)
Spindle Motor kW (HP) 5.63 (7.5)
Hydraulic Motor kW (HP) 2.25 (3)
Cross Feed Drive 80W
Vertical Feed Drive 1/5HP
General Information
Total Rated Horsepower kW (HP) 8.25(11)
Dimension (W×D×H) mm (in.) 2,240×2,160×2,240 (88.19×85.04×88.19)
Machinery Weight (Net) kg (lb.) 2,400 (5,280)
1. Ballscrew on Cross Feed
2. Micro-Adjustment Device on Vertical Feed
3. Wheel and Wheel Flange
4. Wheel Extractor with Wrench
5. Wheel Balancing Arbor
6. Service Tools
7. Diamond Dresser and Base
8. Work Lamp
9. Leveling Blocks with Bolt
10. Lifting Bolt
11. Splash Guard
12. Operation Manual
13. One Year Warranty for Machine under Normal Operation (From the Date on Bill of Lading)
1. Permanent Magnetic Chuck
2. Electromagnetic Chuck
3. Chuck Control w/Demagnetizer
4. Coolant System
5. Coolant System w/Magnetic Separator
6. Coolant System w/Paper Feeding Device
7. Dust Collector
8. Balancing Stand
9. Spare Grinding Wheel
10. Spare Wheel Flange
11. Manual Parallel Dressing Attachment
12. Hydraulic Unit w/Fan
* KAMIOKA reserves the right to change design, color or spec without prior notice.
